NILOS-RING LST-L
Labyrinth seal with system for maximum loads
The LST-L RING is a further development of the NILOS-RING LSTO, which has long proven itself in practice as a non-contact, grease-filled labyrinth seal.
An additional VITON® washer achieves a considerable sealing effect even when liquids are constantly present.
Areas of application
+ Conveyor industry
+ Agricultural machinery
+ General machinery
+ Electric motors
+ And also your specific application
All the advantages at a glance
+ Only 4 mm height
+ Easy installation
+ Surface quality of the bearing seat is sufficient
+ High sealing effect with liquids constantly present
+ Application range -20 °C to +200 °C without grease

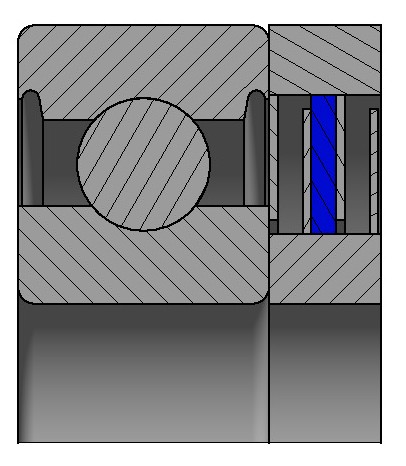

STEEL DISK SEAL LST-L
Sealing packs made of steel plates are ready to install and insensitive to axial pressures. The seal works without contact and can follow axial movements of the rolling bearing rings of up to 0.3 mm without the plates jamming.
Higher sealing effect through additional installation of a VITON® sealing washer
Type LST-L:
The NILOS-RING type LST-L is used where fluids of various types can occur.
Designation:
E.g. For example, the NILOS-RING abbreviation 25 x 47 LST-L refers to a steel washer seal with an additional VITON®-
washer for a rolling bearing with an inner diameter of 25 mm and an outer diameter of 47 mm.
The NILOS-RING on TraceParts
Integrate the NILOS-RING into the CAD model to reliably seal bearings and extend their service life. Perfect for anyone who plans their designs efficiently and precisely.
